NC14021
Zoom in image

NAKATA - NC14021

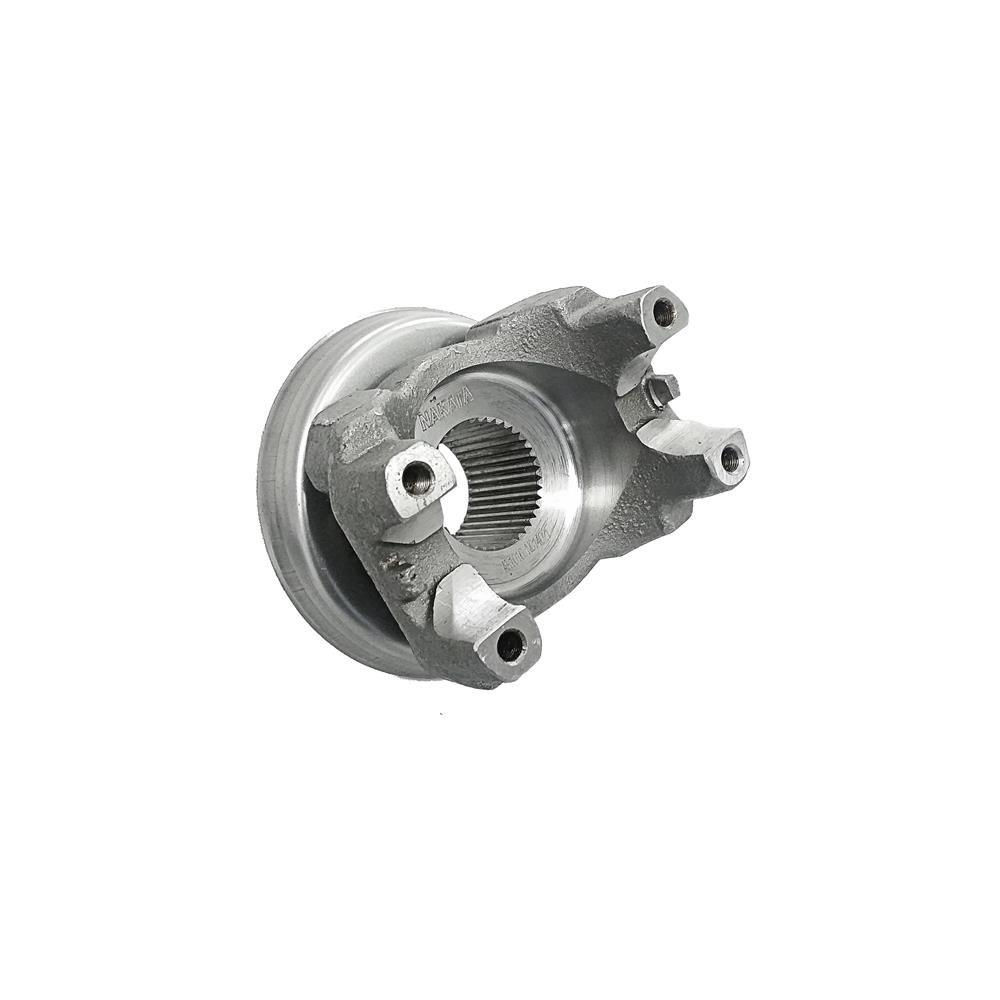

TERMINAL DO DIFERENCIAL NAKATA - NC14021

This product's image is merely illustrative. Product features are subject to change by the manufacturer without prior notice.
Marca da peça

NAKATA - NC14021

TERMINAL DO DIFERENCIAL NAKATA - NC14021
Technical specifications overview
Modelo
MS 145
Quantidade de estrias
39
Detailed Application
Technical specifications
Similar products
Videos
Where to Find
Warranty

Detailed Application

Assembler
Vehicle
Model
Motor
Engine Configuration
Only
Start
End
AGRALEMA 12.0 E-INTERACT 43.9 L 16V SOHV L420052009
AGRALEMA 15.0-SERIE 12 / X124.8 L 8V SOHV L420072011
AGRALE13000E-MECSERIE 10 / X106.5 L 12V SOHV L620072011
FORDCARGOC 15176 BTAA5.9 L 12V SOHV L620022006
FORDCARGOC 1722 EINTERACT 65.9 L 24V SOHV L620062011
FORDCARGOC 1723 LISB 6.76.7 L 24V SOHV L620122017
FORDCARGOC 1517BSD 6666.6 L 12V SOHV L619841986
FORDCARGOC 1717 EINTERACT 43.9 L 16V SOHV L420052011
FORDCARGOC 2429 LISB 6.76.7 L 24V SOHV L620122017
FORDCARGOC 15216 BTAA5.9 L 12V SOHV L620032006
FORDCARGOC 35306 CTAA8.3 L 12V SOHV L619911996
FORDF-16000-6 BTAA5.9 L 12V SOHV L619982005
FORDCARGOC 16216 BTAA5.9 L 12V SOHV L619992002
FORDCARGOC 16226 CT8.3 L 12V SOHV L619912002
FORDCARGOC 1215FORD DIESEL NA 6.66.6 L 12V SOHV L619861992
FORDCARGOC 1723ISB 6.76.7 L 24V SOHV L620122017
FORDCARGOC 1415FTO 6.66.6 L 12V SOHV L619861992
FORDCARGOC 2429ISB 6.76.7 L 24V SOHV L620122017
FORDCARGOC 17216 BTAA5.9 L 12V SOHV L619982006
FORDCARGOC 16306 CTAA8.3 L 12V SOHV L619932002
FORDCARGOC 1317BSD 6666.6 L 12V SOHV L619841986
FORDCARGOC 16176 C8.3 L 12V SOHV L619911992
FORDCARGOC 2429 SLISB 6.76.7 L 24V SOHV L620122017
FORDCARGOC 2429 SISB 6.76.7 L 24V SOHV L620122017
FORDCARGOC 2428 EINTERACT 65.9 L 24V SOHV L620062011
FORDCARGOC 1723 KISB 6.76.7 L 24V SOHV L620122017
FORDCARGOC 17176 BTAA5.9 L 12V SOHV L620022006
FORDCARGOC 17226 CT8.3 L 12V SOHV L620022005
IVECOTECTOR170-E25 TN675.9 L 24V SOHV L620082012
IVECOEUROCARGO230-E24F4AEO681B5.9 L 24V SOHV L620062011
IVECOEUROCARGO170-E22F4AEO681D5.9 L 24V SOHC L620052011
IVECOEUROCARGO230-E22F4AEO681D5.9 L 24V SOHV L620052009
IVECOTECTOR170-E25N675.9 L 24V SOHV L620082012
IVECOEUROCARGO230-E24F4AEO681B5,9 L 24V SOHV L620062011
IVECOIVECO BUS170-E22F4AEO681D5.9 L 24V SOHC L620052008
IVECOEUROCARGO230-E24F4AEO681B5.9 L 24V SOHV L620062011
IVECOEUROCARGO230-E24F4AEO681B5.9 L 24V SOHV L620062011
IVECOEUROCARGO170-E22F4AEO681D5.9 L 24V SOHC L620032011
VOLKSWAGEN17.230 EOD-SERIE 12 / X127.2 L 12V SOHV L620062012
VOLKSWAGEN17.210 OD-SERIE 10 / X106.5 L 12V SOHV L620012005
VOLKSWAGEN13-190-6 BTAA5.9 L 12V SOHV L620012005
VOLKSWAGEN15-180-SERIE 10 / X106.5 L 12V SOHV L620002005
VOLKSWAGENCONSTELLATION17-250INTERACT 65.9 L 24V SOHV L620052011
VOLKSWAGEN15-190-6 BTAA5.9 L 12V SOHV L620012005
VOLKSWAGEN15-170-6 BTAA5.9 L 12V SOHV L620002001
VOLKSWAGENWORKER15-180SERIE 10 / X106.5 L 12V SOHV L620062011
VOLKSWAGEN16-200-6 BTAA5.9 L 12V SOHV L619972000

Unfortunately we couldn't find any detailed applications for this search. Try again with another term.

Technical specifications

Fiscal
Código de barras (EAN)
7890903063935
NCM
8708.50.99
Prazo de garantia
12 Meses
Logístico
Altura da embalagem
130 mm
Comprimento da embalagem
155 mm
Largura da embalagem
165 mm
Peso bruto
3,910 Kg
Quantidade de peças por embalagem
1
Técnico
Assento retentor R
76,3 mm
Modelo
MS 145
Quantidade de dentes da coroa
37 / 39
Quantidade de dentes do pinhão
7 / 8
Quantidade de estrias
39
Spline diâmetro maior
51,41 mm
Spline diâmetro menor
48,64 mm

Similar products

Brand
Code
FORD ORIGINALBG8X4815AA
MERITOR801722
SPICER9043111
VOLKSWAGEN ORIGINAL2TG525283

Unfortunately we couldn't find any detailed applications for this search. Try again with another term.

Videos

Where to Find

Warranty

What is warranty for the factory?

Parts that have defects or manufacturing defects; are within the warranty terms* for manufacturing defects after the sale of the product to the final customer, proven through the invoice, and do not present any type of violation or damage caused by improper use.
*If you have doubts about how to proceed to request the warranty of a part, contact your distributor, he will be able to assist you.

What is not warranty for the factory?

Parts that show violation or damage caused by improper use are not considered as warranty for the factory.

Warranty request

The customer makes the complaint to the mechanic, who reports to the auto parts store. The store reports the problem to the distributor, who is responsible for issuing the warranty request to the factory, preparing the report, monitoring progress and providing feedback to everyone involved in the chain.

Imagem garantias

Distributor, to request a warranty, you need the purchase invoice for the product from the factory, invoice or sales coupon for the product to the end customer, good resolution photos and/or video of the product and a detailed explanation of what the problem is.

Access the portal to issue the request:
https://posvendas.empresasrandon.com.br/

If you don't have a login, contact our warranty team who will provide all the details for accessing and using the portal.

The average time for the entire warranty process, when THERE IS NO need for a physical analysis of the product, is approximately 15 days and, when there is, it is approximately 30 days.

For products from the brands Controil, Fras-le, Fremax, Lonaflex, and Nakata, warranty claims are handled through a technical visit by regional consultants. They will analyze the products, the purchase invoice, the sales invoice or receipt, and the reported issue to determine whether the warranty will be approved. If you have any questions or need more information, please contact our Customer Service at 0800 707 8022 or, if you prefer, via WhatsApp at +55 11 99990-3839, where our representatives will be available to assist you.
